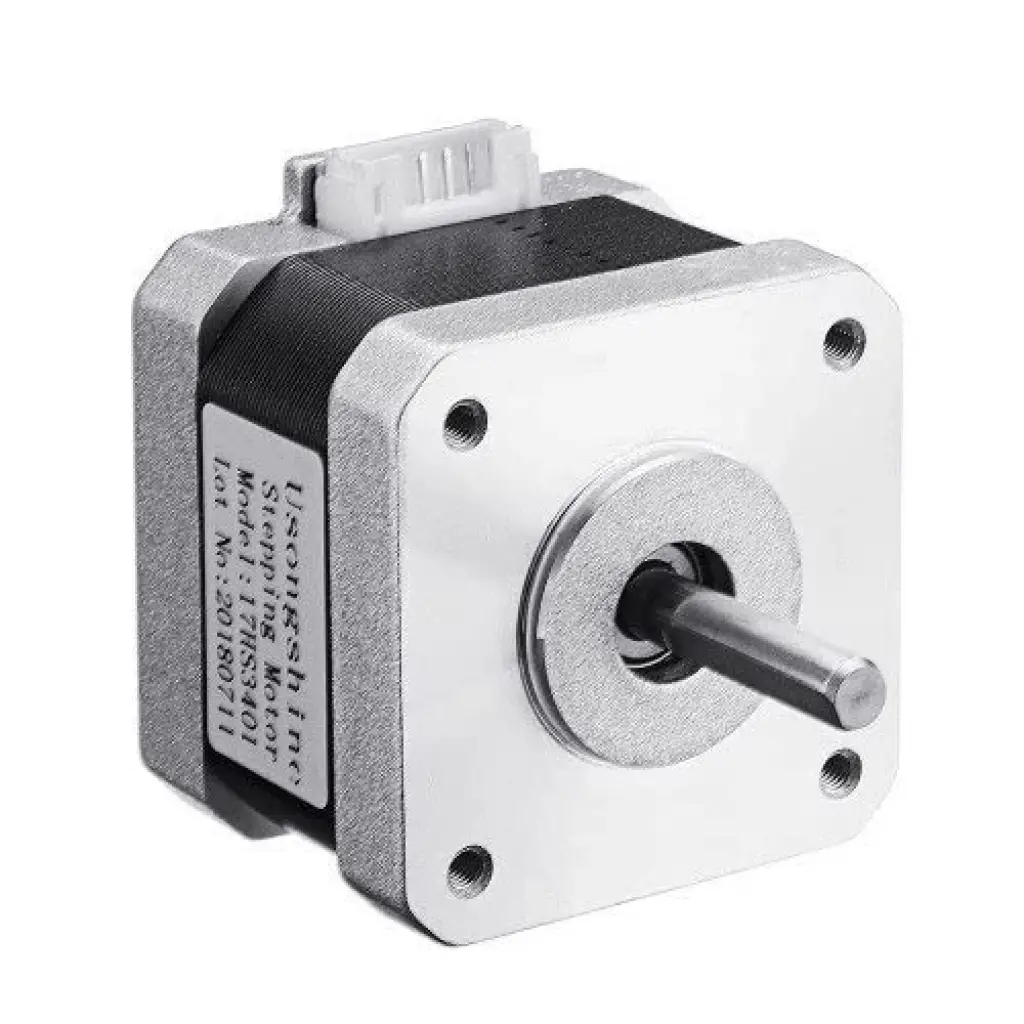

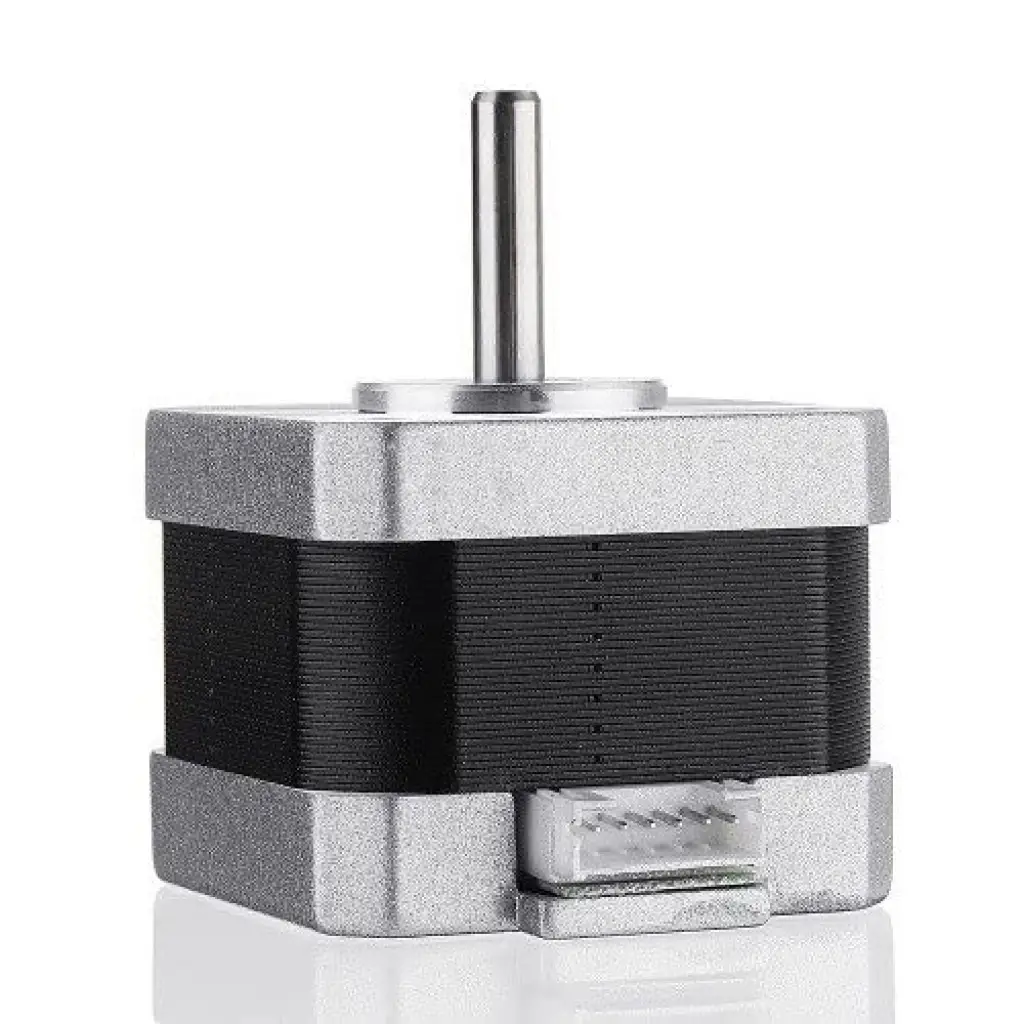

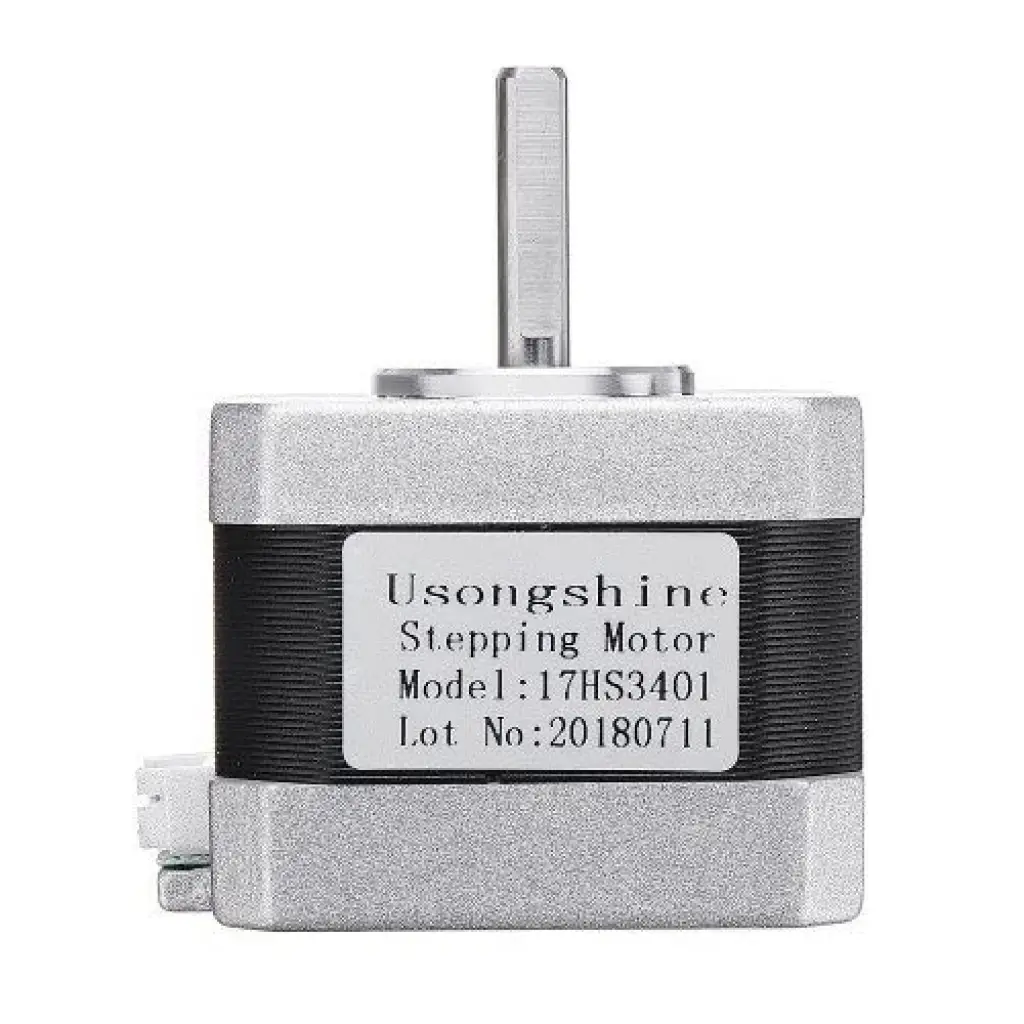

17hs3401 Nema 17 Step Motor

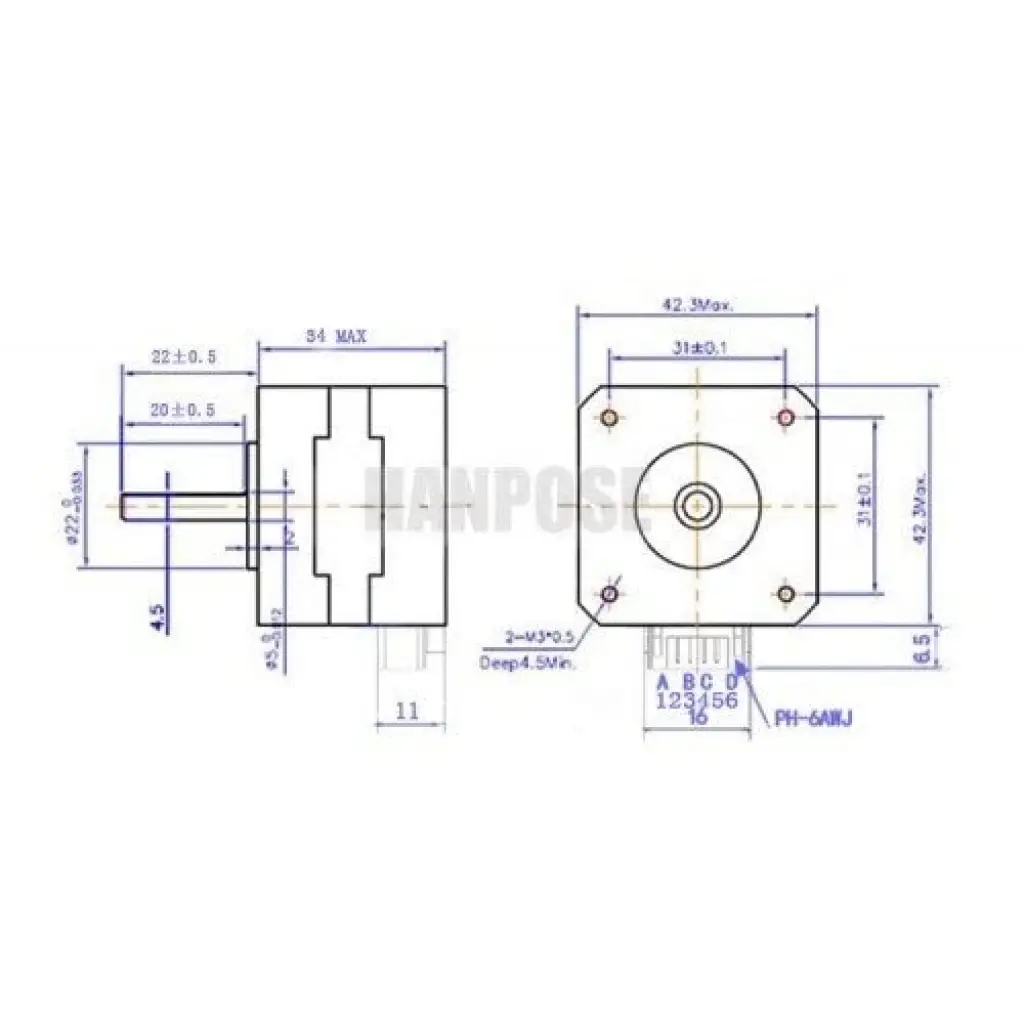

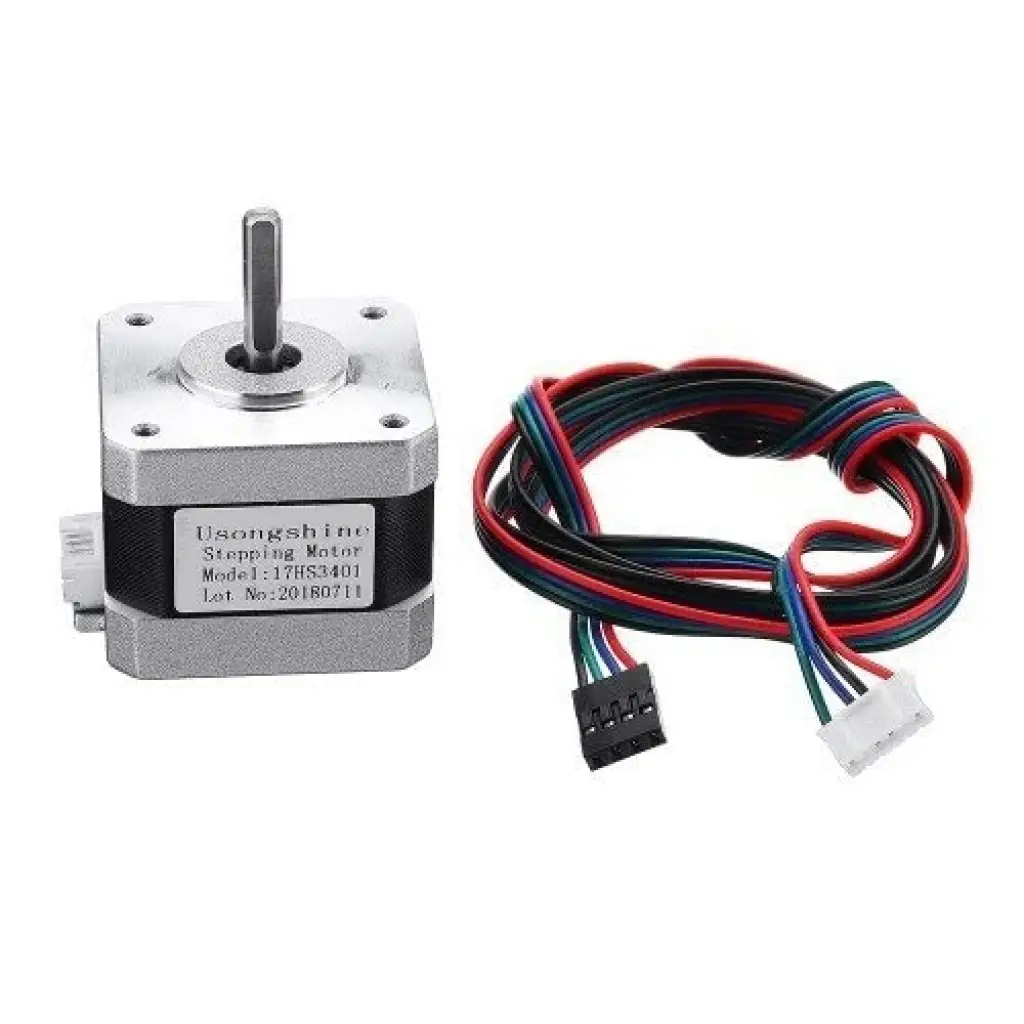

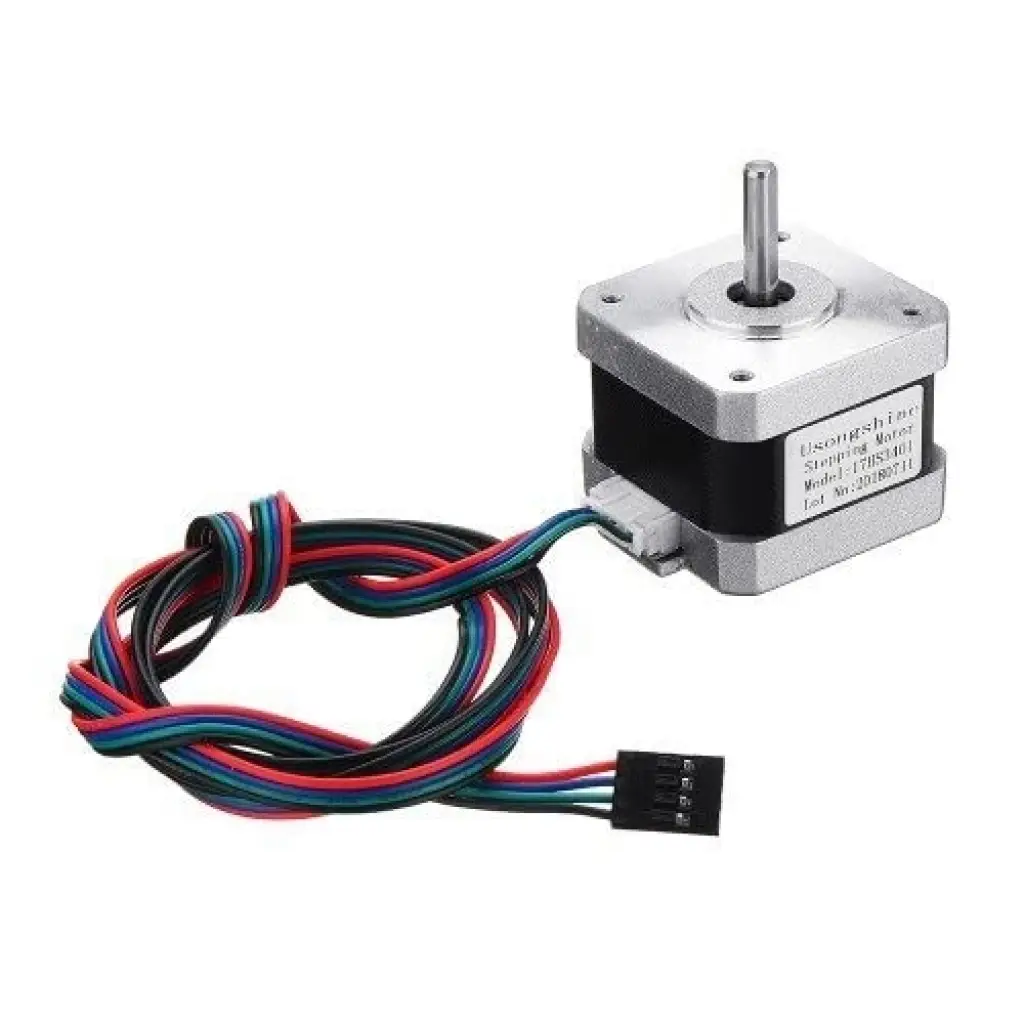

marka: Genel 17HS3401 Nema 17 Step Motor General Specification: Step angle accuracy: + - 5%(full step,not load) Resistance accuracy: + - 10% Inductance accuracy: + - 20% Temperature rise: 80deg Max(rated current,2 phase on) Ambient temperature ----------—20deg ~+50deg Insulation resistance:100MΩ Min,500VDC Insultion Strength--------500VAC for one minute 5mm diameter shaft Red: A+ Green: A- Yellow: B+ Blue: B- ModelStep Angle Motor Length Rated CurrentPhase ResistancePhase InductanceHolding TorqueDetent TorqueRotor InertiaLead WireMotor Weight (deg)(mm)(A)(Ohm)(mH)(N.cm)(N.cm)(g.cm2)(No)(g) 17HS34011.8341.32.42.8281.6344220 Paket İçeriği : 1 Adet 17HS3401 Nema17 Step Motor
