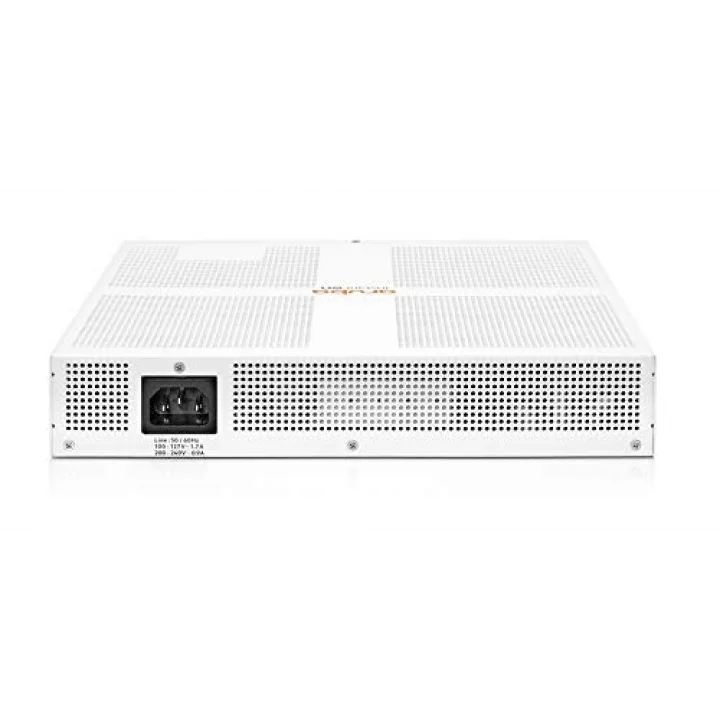

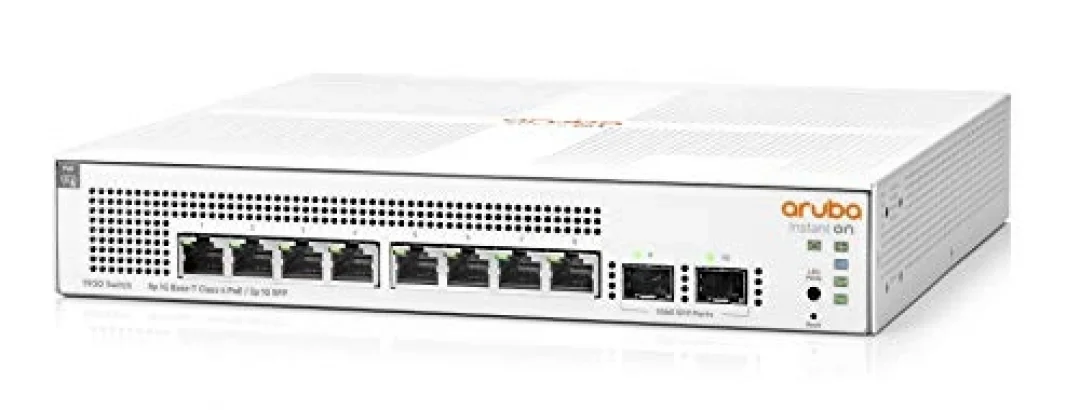

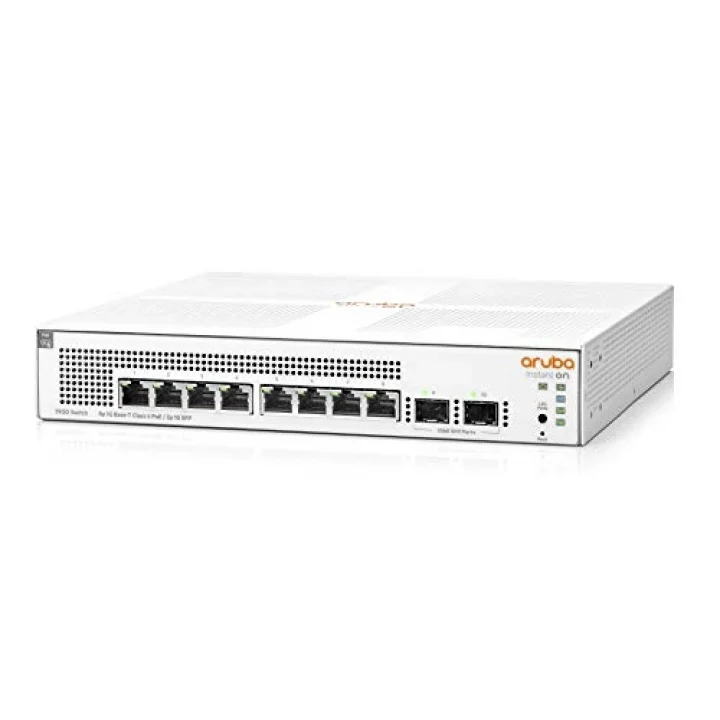

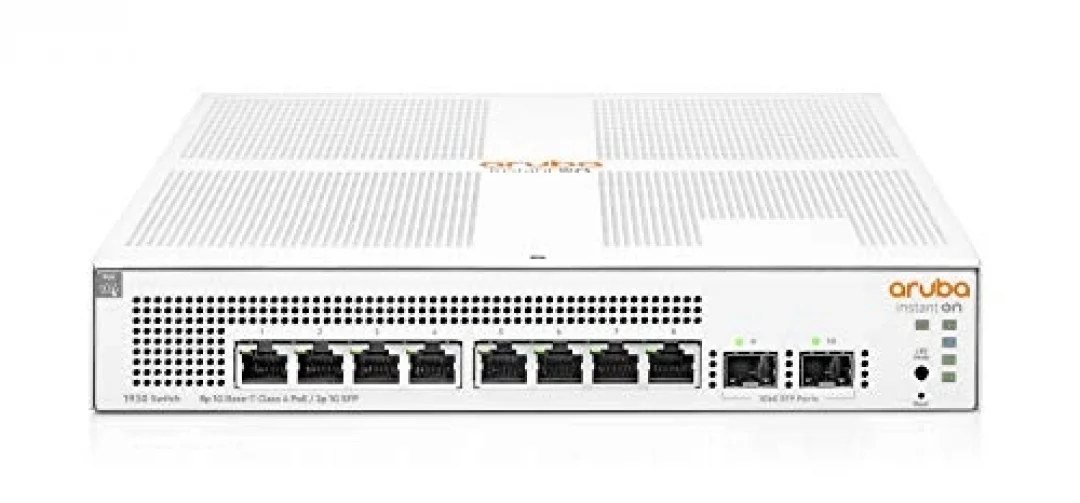

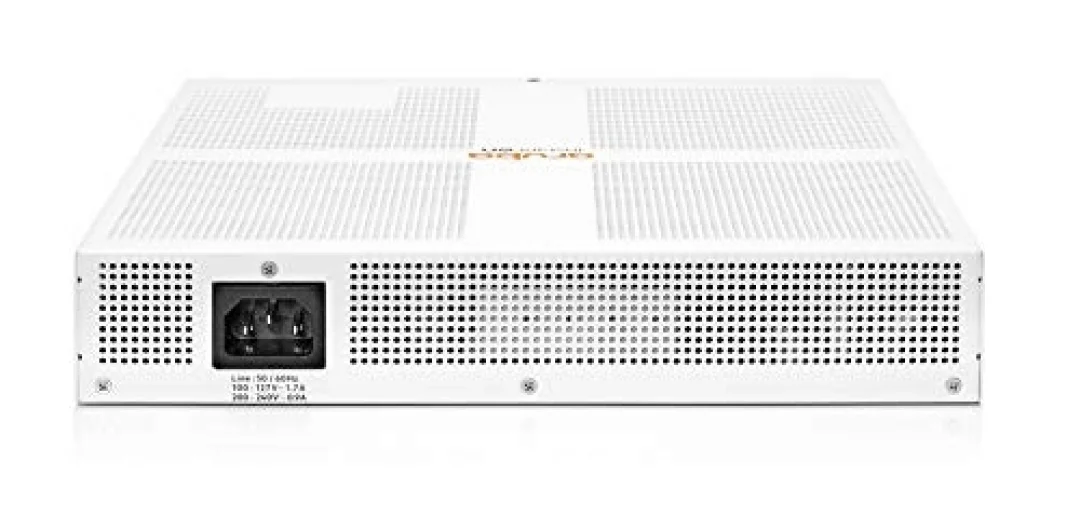

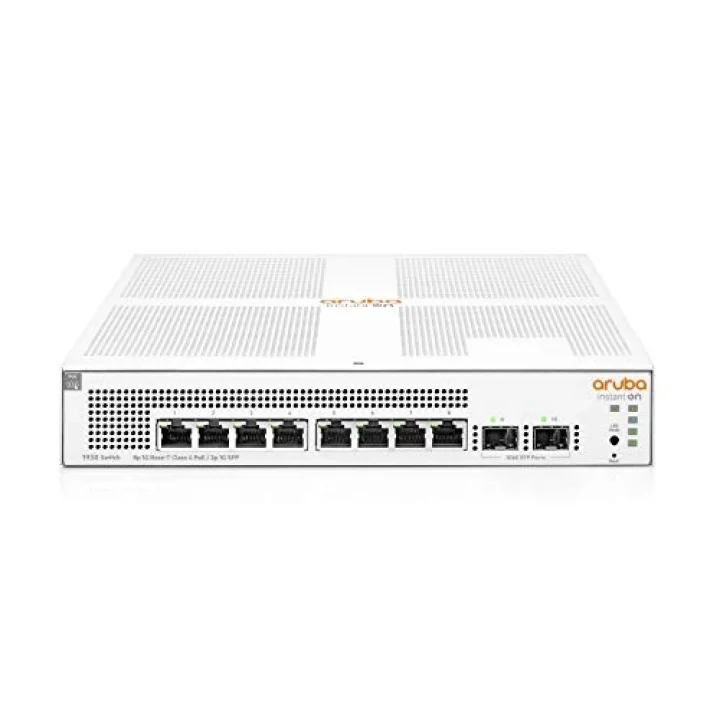

HPE - JL681A

HPE - Aruba JL681A Switch Allgemein Switch type Managed Switch layer L2+ Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Basic switching RJ-45 Ethernet ports quantity 8 Full duplex Y MAC address table 8000 entries Switching capacity 20 Gbit/s Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Power over Ethernet (PoE) Y Rack mounting Y Form factor 1U Design Rack mounting Y Stackable N Form factor 1U Product colour White Management features Switch type Managed Switch layer L2+ Quality of Service (QoS) support Y Web-based management Y Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Combo SFP ports quantity 2 Power over Ethernet (PoE) Power over Ethernet (PoE) Y Total Power over Ethernet (PoE) budget 124 W Data transmission MAC address table 8000 entries Switching capacity 20 Gbit/s Throughput 14.8 Mpps Latency (10-100 Mbps) 5.2 µs Latency (1 Gbps) 3 µs Jumbo frames support Y Packet memory 1.5 MB Network Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G support N Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T Port mirroring Y Full duplex Y Flow control support Y Link aggregation Y Rate limiting Y Auto MDI/MDI-X Y Spanning tree protocol Y Auto-sensing Y VLAN support Y Number of VLANs 256 Power Power source AC Power supply included Y AC input voltage 100 - 240 V AC input frequency 50/60 Hz Power consumption (max) 150.2 W Performance Processor model ARM Cortex-A9 Processor frequency 800 MHz Memory type SDRAM Internal memory 512 MB Flash memory 256 MB Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 15 - 95 % Storage relative humidity (H-H) 15 - 95 % Weight & dimensions Width 254 mm Depth 254 mm Height 43.9 mm Weight 1.16 kg Security IGMP snooping Y S
