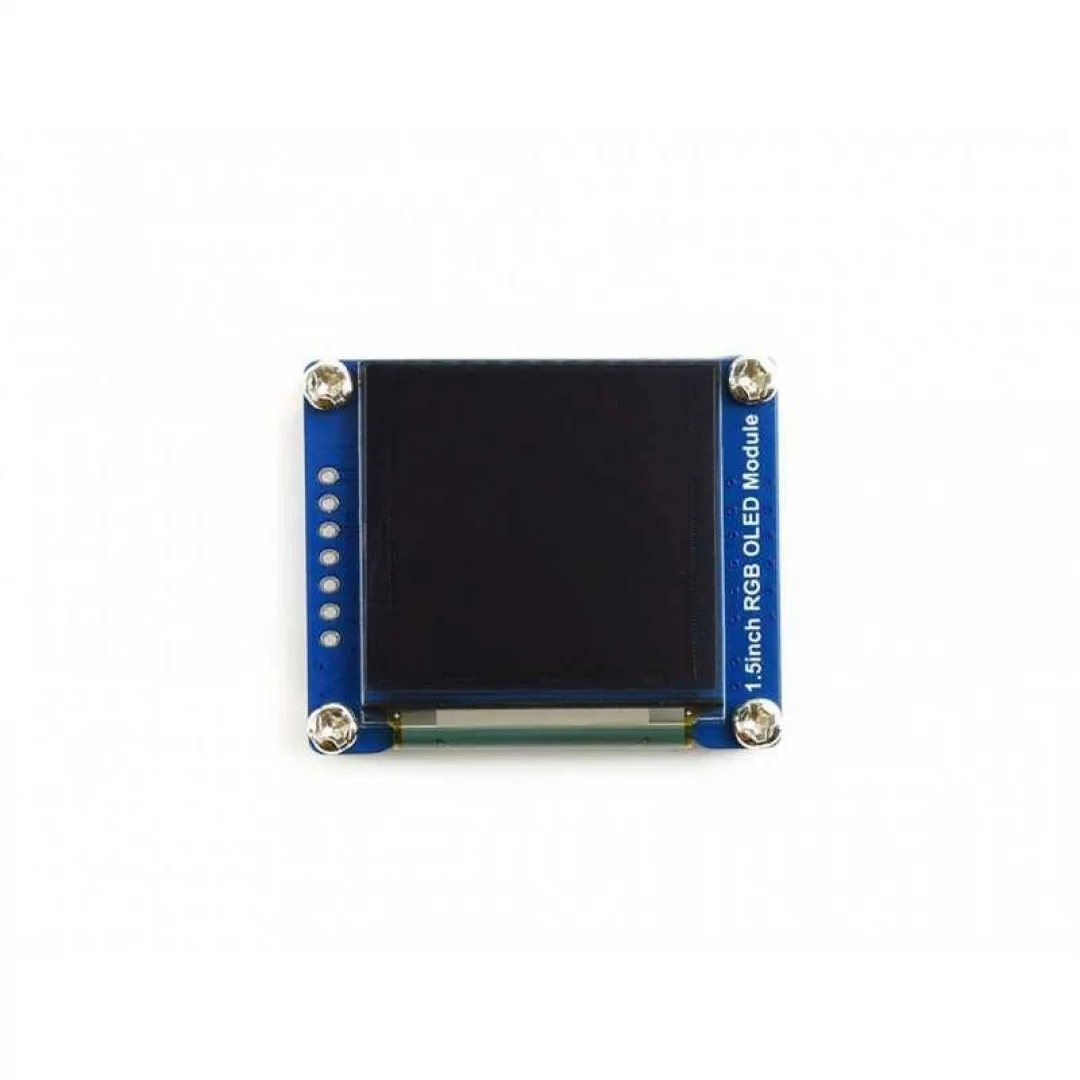

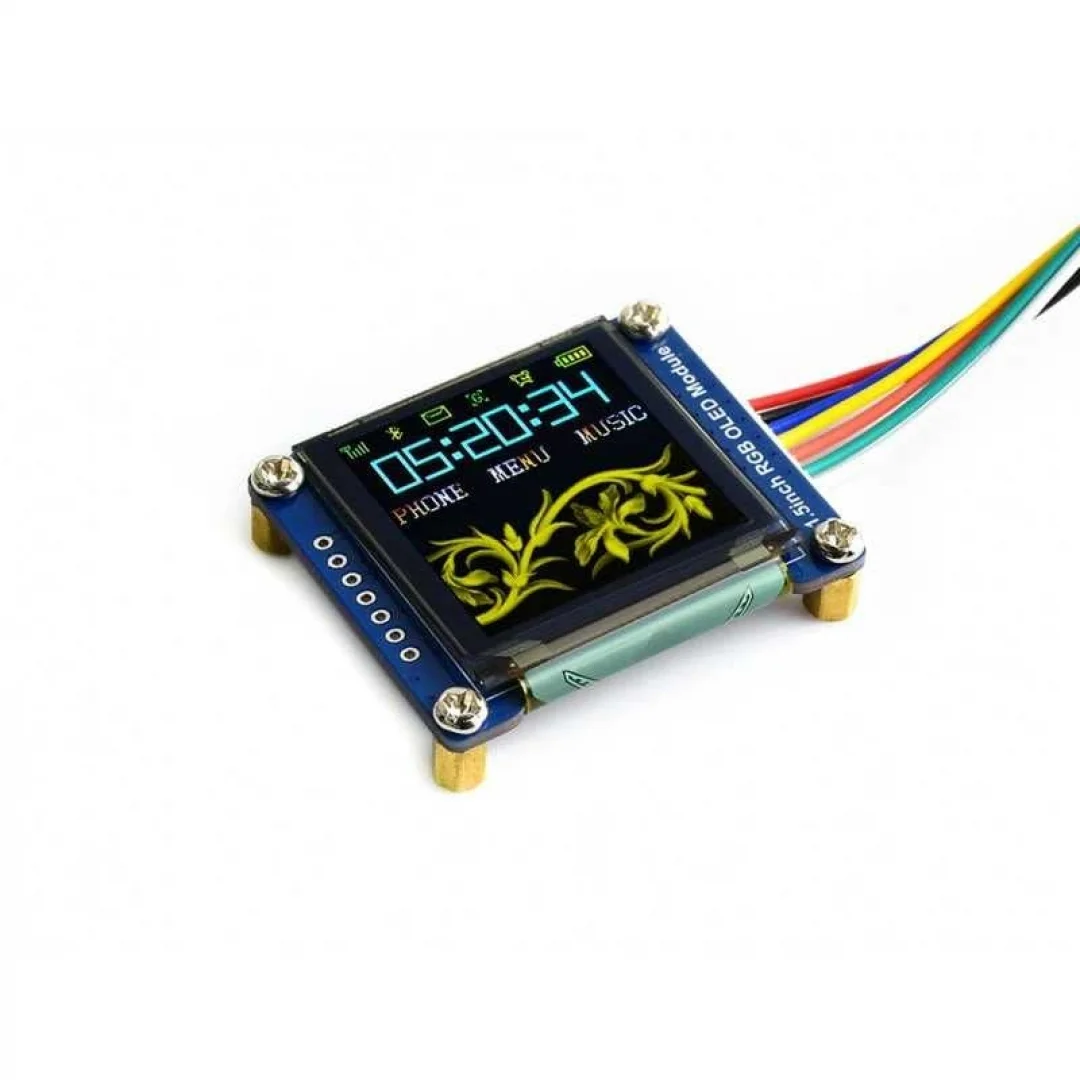

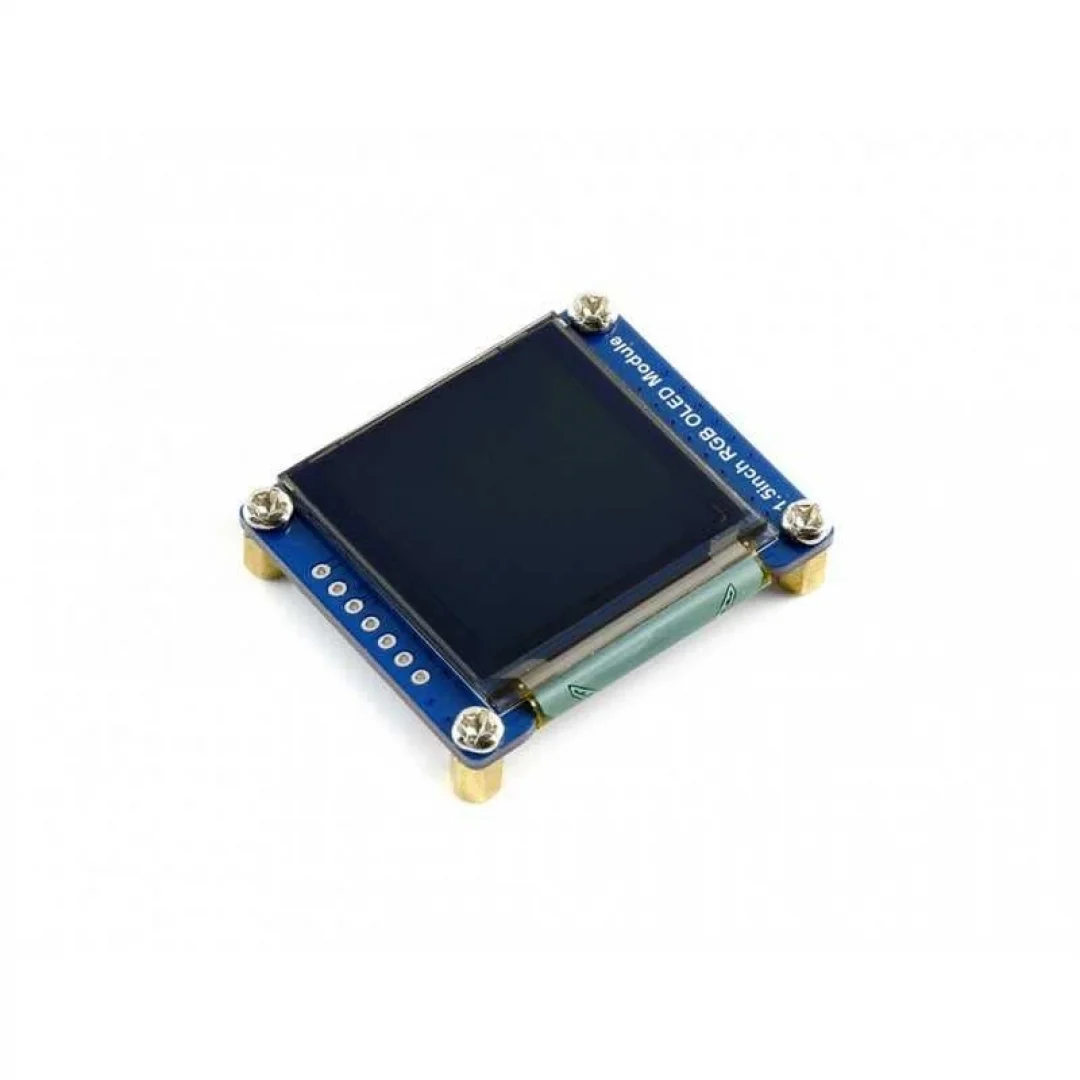

WaveShare 1.5 inch RGB OLED Ekran - 128x128

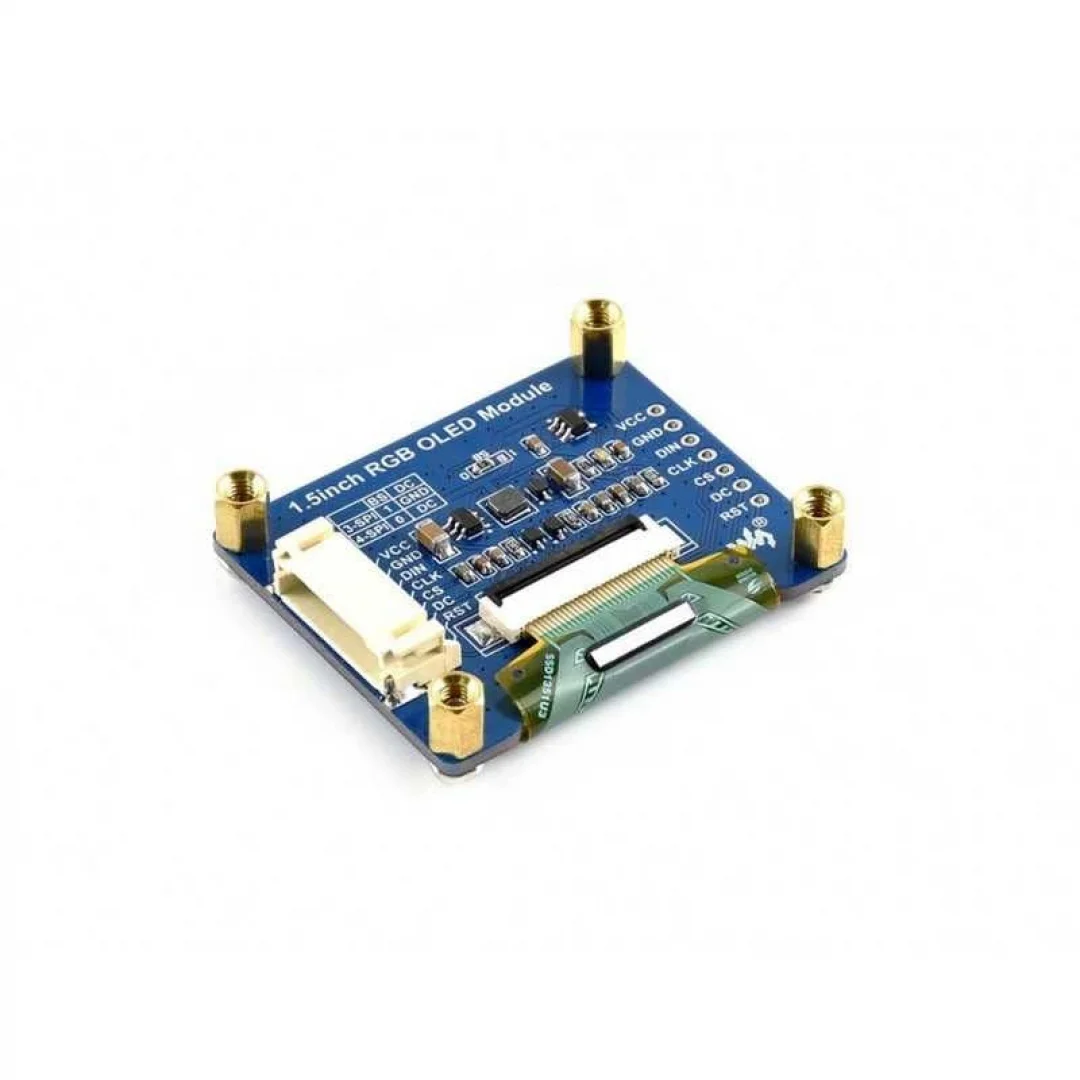

marka: Waveshare This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.Features:128x128 high resolution, 65K colors, clearly displays colorful imagesSupports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistorComes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)Specifications:Driver: SSD1351Interface: 4-wire SPI, 3-wire SPIDisplay color: RGB, 65K colorsResolution: 128x128Viewing angle: >160°Operating voltage: 3.3V / 5VDimension: 44.5 x 37 (mm)Interface:SYMBOLDESCRIPTIONVCCPower (3.3~5V input)GNDGroundDINData inputCLKClock data inputCSChip selection, low activeDC4-wire SPI: Data/Command selection (high for data, low for command)3-wire SPI: Connects to GND, keeps lowRSTReset, low activeThere are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI: BSDC4-wire SPI0DC3-wire SPI1Connects to GNDDimensions:Documents:Wiki : www.waveshare.com/wiki/1.5inch_RGB_OLED_ModulePACKAGE CONTENT:1-1.5inch RGB OLED Module x12-PH2.0 7Pin x112
